ABRASION RESISTANT STEEL (Wear Resistant Steel)

Description:

AR400, AR 450 , AR 500 ,AR550 and AR 600 are high hardness conventional low alloy martensitic steel grades for use in applications requiring high resistance to wear, impact and abrasion. These steels have a nominal hardness of 400, 450 ,500 ,550 and 600 HB respectively. The low carbon and alloying elements incorporated with heat-treated intense roller quenching and/or the tempering process ensure an optimal combination of hardness, toughness and weldability.

Appicaltion:

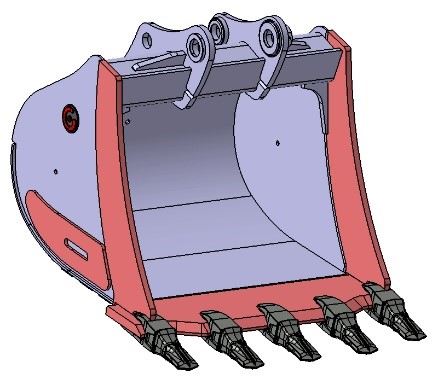

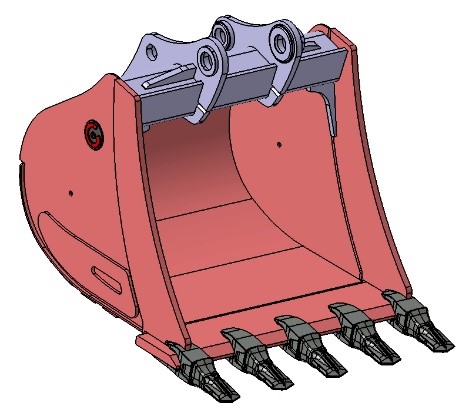

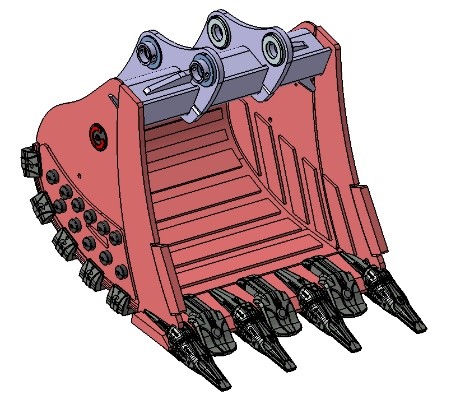

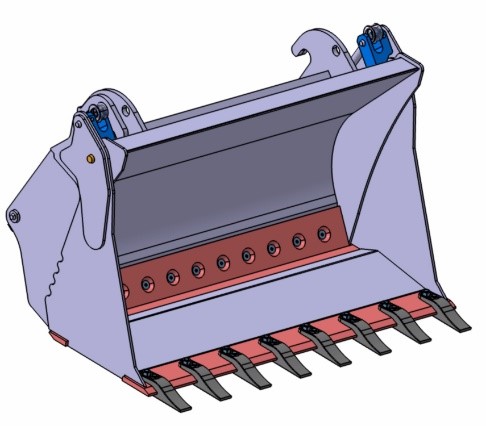

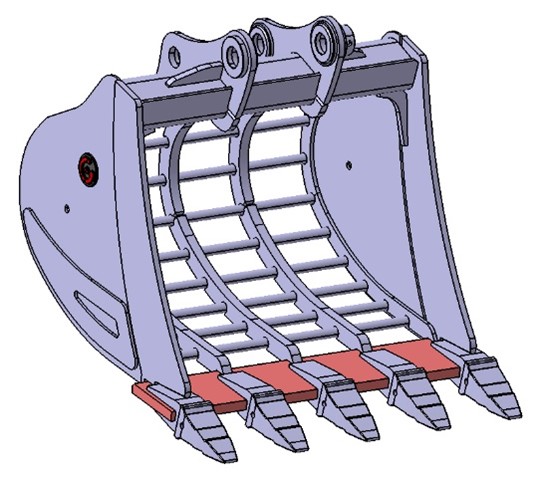

Earthmoving equipment, chute liners, hoppers, wear plates, clamshell buckets, truck bowl liners and storage-bin liners.

Asphalt dryer wear strips, Baffle plates, Bang boards, Brick recliners, Brick and tile dies, Bucket lips Bulldozer blades and mouldboards

Chain drags skip bars, Chute liner strips, Chute sides, Coal screens, Concrete mixer spiral strips, Conveyor bucket, Conveyor plates, Crushers

Diesel locomotive wear plate, Dragline strips, Dragline bucket, Dredge buckets, Dredge pipe recliners Dredge pumps, Dump truck beds

Fan blades, Fan housing recliners, Feed grinding mills, Foundry shakeout machines, Fresno buttons

Gravel chutes, Gravel screens

LHD Bucket, Liner plates, Log conveyors

Mine digger teeth, Mixer blades

Off skip unloading chutes, Ore bin conveyor chutes, Ore chutes

Pedestal & journal box liners, Pug mill knives, Pug mill mining plates, Pulp wood chutes

Quarry and mine skips, Quarry truck liners

Race bars, Recliners, Recliner bars for crushers, Rollers, Roto plates, Rock Tippers

Sandblast plates, Sand chutes, Scarifier teeth, Scrapers, Shaft bin chutes, shot blast plates, Shovel bucket, Shovel bucket wear plate, Skip conveyors, Skip car plates, Sluice pipes, Snowplough shoes, Spouts, Steel mill equipment, Stone chutes, Street sweeper shoe

Tongs, Trailer Buttons, Trenching Machine Teeth, Truck Bed Stripping Bars, Truck Buttons, Tippers

Underground loading pockets, Under ground mini dump trucks

Wear plates, Wear strips on paving -machines, Wheel Abrator part

Hardness Designation (Guaranteed)

Grade	Hardness	Ceq(%)	For Thickness
AR- 400	400 +/- (30) HBW	0.40 -0.73 Max	5mm-102mm
AR- 450	450 +/- (25) HBW	0.50 -0.75 Max	5mm-80mm
AR- 500	500 +/- (40) HBW	0.55- 0.78 Max	5mm-80mm
AR- 550	550 +/- (40) HBW	-------	5mm-32mm
AR- 600	600 +/-(40) HBW	--------	5mm-25mm

*Carbon equivalent Ceq = C+Mn/6+(Cu+Ni)/15+(Cr+Mo+V)/
**Core hardness could be guaranteed if customer would request.
***Brinell Hardness can be by measured by milling of surface 1-2mm (As per EN ISO6506-1)

CHEMICAL COMPOSITION: (Maximum Ladle Analysis)

Grade	C	Si	Mn	P	S	CR	MO	V	Ti	B	Ni
AR- 400	0.20	0.55	1.60	0.03	0.03	1.20	0.50	0.10	0.02	0.004	0.50
AR- 450	0.25	0.55	1.60	0.03	0.03	1.50	0.50	0.10	0.02	0.004	0.70
AR- 500	0.30	0.55	1.60	0.03	0.03	1.50	0.50	0.10	0.02	0.004	1.00
AR- 550	0.35	0.55	1.60	0.03	0.03	0.80	0.50	0.10	0.02	0.004	1.50
AR- 600	0.45	0.55	1.60	0.03	0.03	0.80	0.50	0.10	0.02	0.004	1.50

*Elements not shown in the table may be added when necessary and properties required . The chemical compositions shown here are based on molten steel analysis randomly from heat.

Mechanical Properties (Typical Values)

Grade	Yield Strength (Mpa)	Tensile Strength(MPa)	Elongation (A5)%	Temperature	Joules
AR- 400	1000	1250	12	-40	>27
AR- 450	1100	1350	10	-40	>27
AR- 500	1200	1450	8	-40	>27
AR- 550	1250	1550	8	NA	NA
AR- 600	---	---	---	NA	NA

Recommended Bending Radius and Bending Direction

Grade	Perpendicular to Rolling Direction	Parallel to Rolling Direction
AR- 400	3.5 x t	4.5 x t
AR- 450	4.5 x t	5.5 x t
AR- 500	5.5 x t	6.5 x t
AR- 550	Bending is not recommended.	Bending is not recommended.
AR- 600	Bending is not recommended.	Bending is not recommended.

Welding and Cutting Methods

Welding Method	AR plates are very convenient in welding .Lower carbon equivalent of plates results good weldability . And all conventional welding methods like submerged arc welding , inert gas welding, manual electric welding can be applied .
Cutting Methods	AR Plates may cut easiliy at site with different cutting methods like Oxy-fuel cutting, Laser cutting, Plasam cutting , Waterjet cutting and Pug cutting methods.
UltraSonic Testing	Thickness above 8mm ,all plates are UT tested and controlled against class S2, E2 according to EN 10160
Precautions	AR plates are quenched and subsequently tempered then by default stress relieved plates; quality may reduce with exposure of temperature above 200 ºC while cutting or handling of plates.

APPROXIMATE EQUIVALENT -ABRASION OR WEAR RESISTANT PLATES WORLDWIDE

ABRASION OR WEAR RESISTANT PLATES								PRODUCTION RANGE
BRAND NAME	400-BHN RANGE	450-BHN RANGE	500-BHN RANGE	550-BHN RANGE	600-BHN RANGE	MILL NAME (MAKE)	COUNTRY (ORIGIN)	THICKNESS RANGE	WIDTH RANGE	LENGTH RANGE
ROCKSTAR	360 - 430	425 - 475	450 - 540	---	---	AMNS	INDIA	6MM - 80MM	1.50 to 3.0 meter	12 Meter MAX
ROCKHARD	370 - 430	425 - 475	470 - 550	---	---	JSPL	INDIA	6MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
EVERHARD	370 - 430	425 - 475	460 - 540	510 - 590	560 - 540	JFE STEEL	JAPAN	5MM - 101 MM	1.50 to 3.0 meter	12 Meter MAX
ABREX	360 - 440	410 - 490	450 - 550	---	550 - 650	NSSMC	JAPAN	3MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
SUMIHARD	360 - 440	410 - 490	450 - 550	---	---	SUMITOMO METAL	JAPAN	3MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
WELHARD	360 - 440	410 - 490	450 - 550	---	---	NIPPON STEEL	JAPAN	3MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
HARDOX	370 - 430	425 - 475	470 - 540	510 - 590	560 - 640	SSAB	SWEDEN	3MM - 120MM	1.50 to 3.0 meter	12 Meter MAX
RAEX	370 - 430	425 - 475	470 - 540	---	---	RUUKKI	FINLAND	2MM - 80MM	1.50 to 3.0 meter	12 Meter MAX
QUARD	360 - 440	410 - 490	450 - 550	510 - 590	---	NLMK	BELGIUM	5MM - 60MM	1.50 to 3.0 meter	12 Meter MAX
FORA	370 - 430	425 - 475	470 - 540	---	---	INDUSTEEL	BELGIUM	5MM - 60MM	1.50 to 3.0 meter	12 Meter MAX
CREUSERBRO	370 - 430	425 - 475	470 - 540	---	---	INDUSTEEL	BELGIUM	5MM - 60MM	1.50 to 3.0 meter	12 Meter MAX
ABRAZO	370 - 430	425 - 475	470 - 540	---	---	TATA CORUS	UK	6MM - 80MM	1.50 to 3.0 meter	12 Meter MAX
MIILUX	370 - 430	425 - 475	470 - 540	---	---	MIILUX	TURKEY	6MM - 80MM	1.50 to 3.0 meter	12 Meter MAX
SIDUR	370 - 430	425 - 475	470 - 540	510 - 590	560 - 640	ACRONI	SLOVENIA	3MM - 120MM	1.50 to 3.0 meter	12 Meter MAX
NICRODUR	370 - 430	425 - 475	470 - 540	---	---	ACRONI	SLOVENIA	3MM - 120MM	1.50 to 3.0 meter	12 Meter MAX
DILLIDUR	370 - 430	425 - 475	470 - 540	---	---	DILLINGER HUTTE	GERMANY	8MM - 150MM	1.50 to 3.0 meter	12 Meter MAX
BRINAR	370 - 430	425 - 475	470 - 540	---	---	SALZGITTER	GERMANY	3MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
XAR	370 - 430	425 - 475	470 - 540	---	---	THYSSENKRUPP	GERMANY	3MM - 100MM	1.50 to 3.0 meter	12 Meter MAX
PERDUR	370 - 430	425 - 475	470 - 540	---	---	THYSSENKRUPP	GERMANY	4MM - 10MM	1.50 to 3.0 meter	12 Meter MAX
BISALLOY	370 - 430	425 - 475	470 - 540	---	---	BISALLOY	AUSTRALIA	5MM - 60MM	1.50 to 3.0 meter	12 Meter MAX
DUROSTAT	370 - 430	425 - 475	470 - 540	---	---	VOESTALPINE	AUSTRIA	5MM - 60MM	1.50 to 3.0 meter	12 Meter MAX
